My 12v down streaming setup

Tank is a 2 gal accumulator. Keeps a steady water supply to the pumps. Without it and doing a house with poor water supply, I would notice if a toilet gets flushed. This gives me that 5-10 second buffer time with no loss in pressure.

The pumps built in switches are cranked down to the max which is supposedly around 125 psi. I then run all of a single Wasco liquid pressure switch set at 90 psi. So, all pumps are synced together.

1 Like


You can see the switch in this pic. My first build used an air compressor switch which worked well for a couple years.

1 Like

Do you have separate switch on each pump? Looking online, looks like the Wasco switchs are pretty expensive. How much is the control box and all the switches. I’m thinking I could use to equalize 2 pumps on my new trailer build.
Where do you install the actual switches, into your output line. You have any closeups?
TIA

I have one switch that turns the whole system on. That switch puts power to the NC Wasco switch, then to a relay that supplies power to a fuse panel. So, flip it on and all pumps come on together until 90 psi. All pumps are individually fused, so if one locks up it doesn’t stop me from washing. Luckily that’s never happened, but I rather have them all fused individually for that reason.

Yes, that switch is expensive. You can use a cheap air compressor switch instead. I had one that was on at 70, off at 100. The only reason I switched to the Wasco was we use them at my work on our machines and a couple years back we switched from this adjustable version to a set pressure, so these were no longer needed, and we had extras laying around.

Here’s a pic of inside my electrical box. This next rig will have a bit bigger box, it’s a bit cramped.

4 Likes

It’s just a cheap lighted rocker switch that turns it all on, you can see it in the upper left corner. Since I run all the power through the relay, I don’t need an expensive switch. It’s not in this pic, but I have a digital voltage gauge on the cover for this box. It’s pretty much useless now since I switched to a lithium battery. I either have 13.6v or its dead, no in between

1 Like

Been slow around here, so figured I’d give a quick update on the latest system. I’m going to have to add back the small accumulator tank on the output side. I had one on my previous version, but thought it wasn’t necessary. Ends up it is needed to help hold the pressure when off the gun. My pressure switch is very sensitive and tries to hold pressure exact. When not spraying, the pumps are turning on and off for just milliseconds trying to keep the pressure exact. This constant on/off for fractions of a second has now fried two relays.

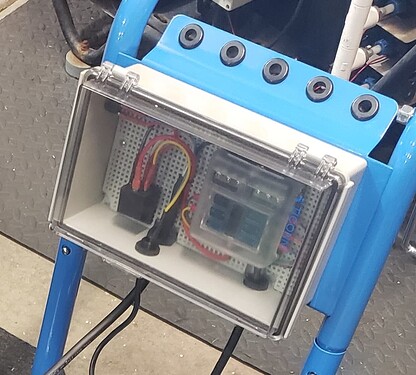

Other than that, I like the new layout. Looks cleaner and more professional IMO. It’s much easier to change pumps when the time comes and with 5 of these little guys on here, I’m maintaining a bit higher pressure when spraying, so getting a bit more flow and distance. It’s set to 97 psi and can hold about 80-85 psi while spraying. I was getting about 75 with 4 pumps on the previous version.



4 Likes

Since these cheap pumps will drip and leak slightly, I hung them with the pump head down so they won’t get the motors wet. I also put a drip pan under them with a drain so the cart itself stays dry. They really leaked when my relay failed in the ON position and my gauge was reading 135 psi! Luckily, this electrical box has latches so I could quickly open it and pull the power off the relay. These cheap little pumps didn’t get hurt, cleaned a bunch houses since that happened and they are working just fine.
